| Parameter |
| Bus Model No. |
BJ6122UCTK01 |
| Seat No. |
49+1+1 |
| Driver hand |
Left hand driver |
| Overall dimension(mm) |
12000X2550X3790 |
| Specification |
| Engine |
WP10.375 Euro 3 Speed limited:130KM/H |
| Rated power (KW(PS)/RPM):276 (375)/2200 |
| Cooling system |
Mechanical cooling system |
| Transmission |
Fast 6DS180T gear box |
| Front axle |
6.5T front alxe ,disk break |
| Rear axle |
13T rear alxe ,drum break |
| Suspension |
6 air bag suspension,import shock absorb,front suspension stabilizer bar |
| Tyre |
Double coin brand 295/80R22. 5(one spare tyre) |
| Steering |
Integral Power Steering |
| ECAS |
With |
| Brake |
Front disk and rear drum break |
| ABS |
WABCO ABS |
| Clearance Adjuster |
With |
| Fuel System |
600L |
| Floor structure |
Grooves floor |
| Door |
Single closed front door with sliding window |
| Window |
Front window shield: Up-- laminated glass, black color, |
| Down--- laminated glass, colourless. |
| Rear window:Closed colourless glass |
| Side window: left and right side totally closed, the last window sliding.black color |
| Emergency exit |
With |
| Emergency Roof Door |
Ventilator emergency |

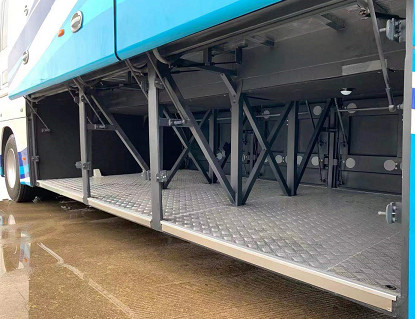

| Luggage compartment door |
Aluminium through type manual up-sliding luggage compartment door |
| Luggage compartment door |
Aluminium alloy floor cove for the luggage compartment. |
| Luggage compartment with PVC floor |

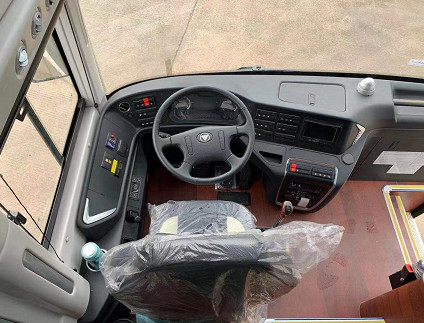

| Driver Seat |
High back, adjustable,damping, driver seat |

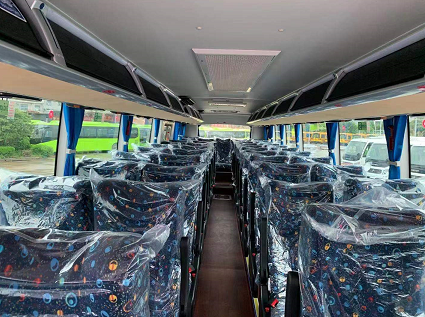

| Passenger Seat |
49 Units,JYSW-2-07 type passenger,(USB charger, foot rest,book net,sliding,fabric cover,table board )49个JYSW-2-07 |
| Safety belt: Two-point seat belt(last row passenger seats with three point safety belts) |
| Visual and Audio System |
DVD player(single disc), Front: 19’s fix LCD TV ,rear 22S manual reverse LCD TV |
| 1 Microphone(1 wireless) |
| Reverse monitor system |
6 monitors |
| No.1 monitor: on the instrument for monitoring the front |
| No.2 monitor: one the rear ,for reversing monitor . |
| No.3 monitor: Installed above the left rear-view mirror to shoot the left rear side |
| No.4 monitor: Installed above the right rear-view mirror to shoot shoot the right side |
| NO.5 Front door for driver area and passenger area |
| NO.6 Rear passenger area for the rear to front |
| All cameras have night vision and waterproof functions |
| Air-Conditioner |
32680 Cal/h, roof mounting Non- independent |
| Refrigerator |
With |
| Heater |
Front windshield defroster |
| Rear-view mirror |
Rabbit ears electric exterior rear-view mirror with defroster |
| Inner lighting |
Driver roof lamp, Long roof LED lamp, Step lamp, reading lamp |
| Curtain |
With |
| Floor and floor covering |
PVC floor and anti-grinding floor leather |
| Inner luggage rack |
Luggage rack on both side with cover |
| Others |
Electronic Clock, Vehicle Flow Tank, Stainless Steel Wheel Cover |
| Automatic fire extinguishing device in engine compartment |
| 1unit 5 kg dry powder fire extinguisher |
| Six safety hammers |
| Installation of Vehicle Speed Display by Electronic Clock in Vehicle |
| Painting: FOTON stand |
| LED light on the side window |
| Double manual shade curtain |
| If any specification is not specified above, please refer to Foton’s standard specs |
